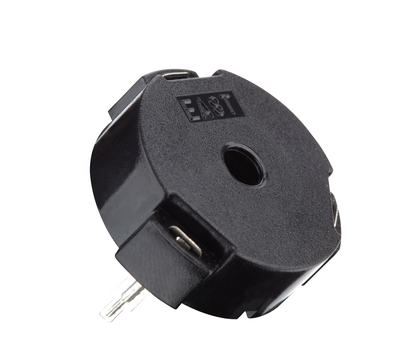

TFM-24
Features & Applications
Features
- Easy installation
- High reliability
- Low power consumption
- High sound pressure levels
Applications
- Consumer Electronics
- Industrial & Automation
- Medical
- IoT & Smart Home
- Intercom
| Diameter | 31 mm |
|---|---|
| Height | 11 mm |
| SPL | 75 dB |
| Frequency | 3.0±0.5 kHz |
| Rated Voltage | 12VDC |
| Mounting | PIN |
Electrical Specifications

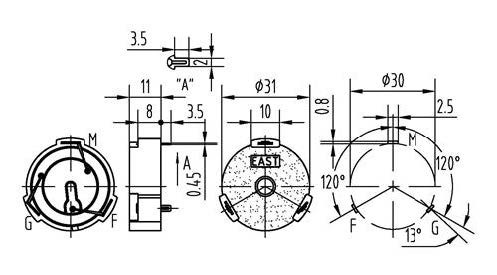

尺寸(毫米)
声压
Detailed Specifications
75dB/12VDC/100cm,12VDC,3~20VDC,16mA/12VDC,3.0± 0.5kHz(Tone Nature : Continuous),-20~+70ºC(Storage Temperature: -30~+80ºC),PC/Black,4.8g,More Then 10N
