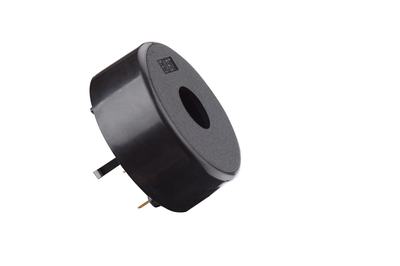

TFM-30
Features & Applications
Features
- Easy installation
- High reliability
- Supports high voltage
- Low power consumption
- High sound pressure levels
Applications
- Consumer Electronics
- Industrial & Automation
- Medical
- Security Access
- IoT & Smart Home
- Intercom
| Diameter | 30.6 mm |
|---|---|
| Height | 16 mm |
| SPL | 95 dB |
| Frequency | 3.4±0.5 kHz |
| Rated Voltage | 9VDC |
| Mounting | PIN |
Electrical Specifications
尺寸(毫米)
声压
Detailed Specifications
95dB/9VDC/30cm;85dB/9VDC/290cm,9VDC,3~14VDC,70mA/9VDC,2.9~3.4kHz (Tone Nature: Continuous),-40~+85ºC,PA-757 (ABS)/Black,6.3g,More Then 10N;Silver Electrode Thickness:5±2um
