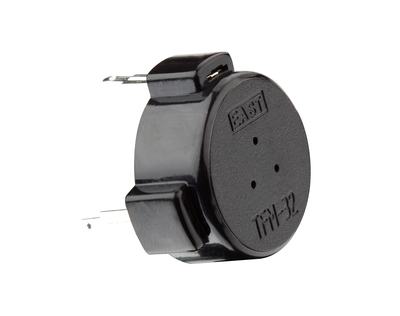

TFM-32
Features & Applications
Features
- Easy installation
- High reliability
- Supports high voltage
- Low power consumption
- High sound pressure levels
Applications
- Consumer Electronics
- Industrial & Automation
- Medical
- Security Access
- IoT & Smart Home
- Intercom
| Diameter | 24 mm |
|---|---|
| Height | 11 mm |
| SPL | 90 dB |
| Frequency | 3.5±0.5 kHz |
| Rated Voltage | 10VDC |
| Mounting | PIN |
Electrical Specifications

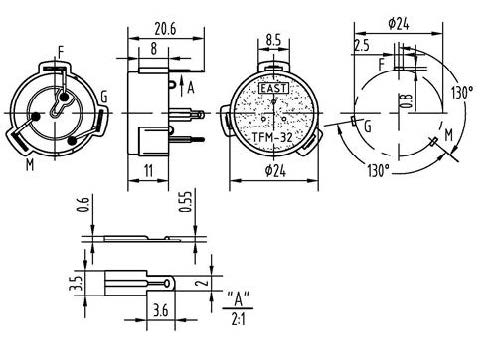

尺寸(毫米)
声压
Detailed Specifications
90dB/10VDC/10cm,10VDC,8~12VDC,15mA/10VDC,3.5± 0.6kHz,-20~+70ºC(Storage Temperature:-30~+80ºC),PC/Black,3.5g,More Then 10N
