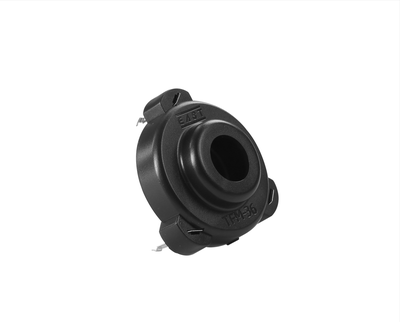

TFM-36
Features & Applications
Features
- Easy installation
- High reliability
- Supports high voltage
- Low power consumption
- High sound pressure levels
Applications
- Consumer Electronics
- Industrial & Automation
- Medical
- Security Access
- IoT & Smart Home
- Intercom
| Diameter | 39 mm |
|---|---|
| Height | 16 mm |
| SPL | 106 dB |
| Frequency | 3.2±0.3 kHz |
| Rated Voltage | 12VDC |
| Mounting | PIN |
Electrical Specifications

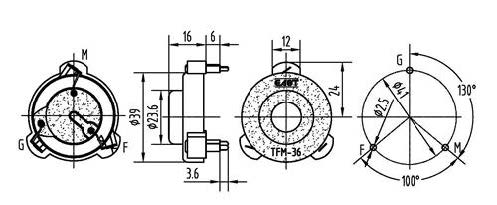

尺寸(毫米)
声压
Detailed Specifications
106dB/12VDC/10cm,12VDC,3~18VDC,15mA/12VDC,3.2± 0.3kHz,-20~+60ºC(Storage Temperature:-20~+70ºC),ABS(PA-757)/Black,8.4g,More Then 10N
