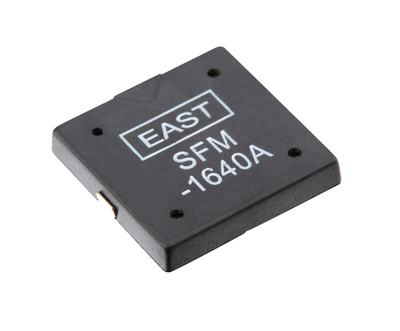

SFM-1640A
Features & Applications
Features
- Wide operating voltage range
- Easy installation
- High reliability
- Ultra-thin design
- Compact size
- Ultra-miniature
- Compatible with 260°C reflow soldering
Applications
- Consumer Electronics
- Industrial & Automation
- Automotive
- Medical
- IoT & Smart Home
- Intercom
| Height | 2.5 mm |
|---|---|
| Length | 16 mm |
| Width | 16 mm |
| SPL | 70 dB |
| Frequency | 4.0 ± 0.5 kHz |
| Rated Voltage | 3Vp-p |
| Mounting | SMD |
Electrical Specifications

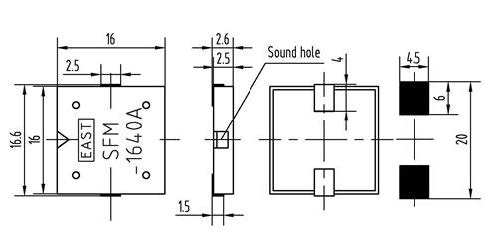

尺寸(mm)
声压
