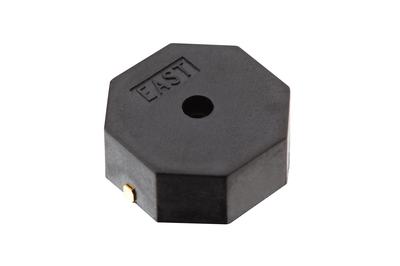

SFM-2325
Features & Applications
Features
- Wide operating voltage range
- Easy installation
- High reliability
- Ultra-thin design
- Compact size
- Ultra-miniature
- Compatible with 260°C reflow soldering
Applications
- Consumer Electronics
- Industrial & Automation
- Automotive
- Medical
- IoT & Smart Home
- Intercom
| Height | 9 mm |
|---|---|
| Length | 22.2 mm |
| Width | 22.2 mm |
| SPL | 88 dB |
| Frequency | 2.5 ± 0.5 kHz |
| Rated Voltage | 9Vp-p |
| Mounting | SMD |
Electrical Specifications

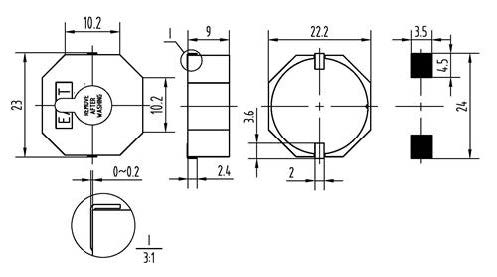

尺寸(毫米)
声压
Detailed Specifications
88dB/2.5kHz/9Vp-p square wave /10cm,40Vp-p,35±30%nF(At 1000Hz),12mA/2.5kHz/9Vp-p square wave,2.5± 0.5kHz,-20~+85℃,PPS/Black(Pin Material /Plated:Cu/Au),3.5g,More than 10N
