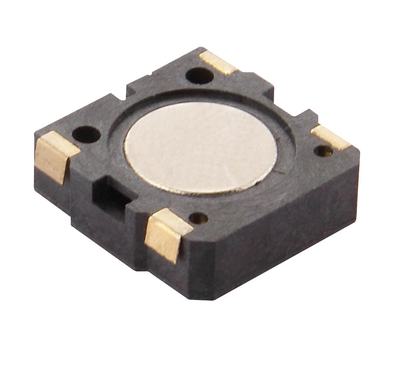

SES-13S04-8N0.7R
Features & Applications
Features
- Compatible with 260°C reflow soldering
- Low power consumption
- Flat form factor
Applications
- Industrial
- Medical
| Height | 4 mm |
|---|---|
| Length | 13 mm |
| Width | 13 mm |
| SPL | 87±3 dB |
| Impedance | 8 Ω |
| Frequency | 0.9±20% kHz |
| Power | 0.7 W |
Electrical Specifications
Dimensions (mm)

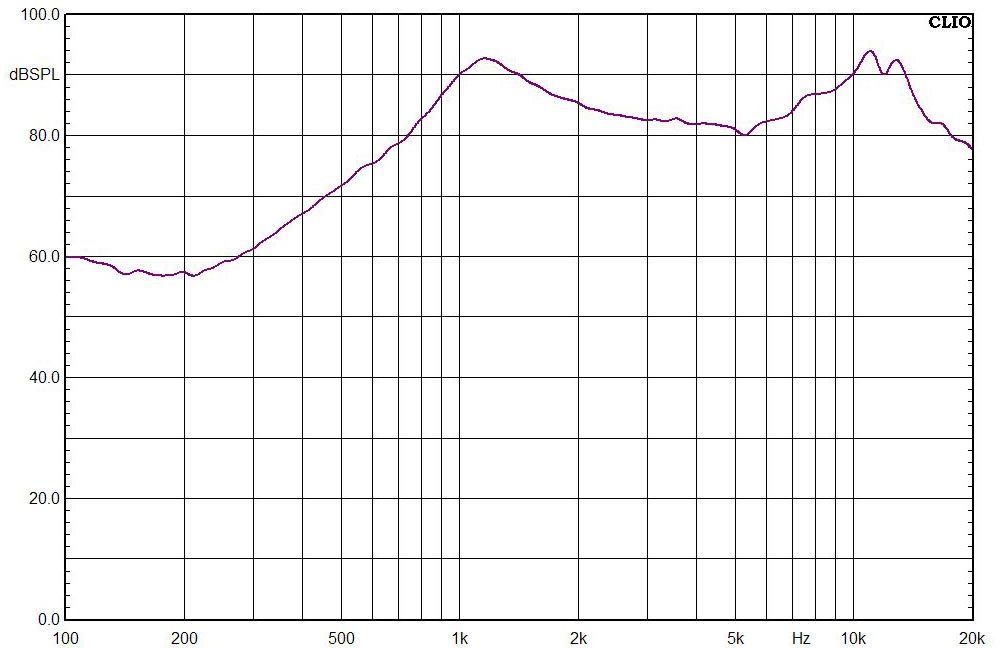

Sound Pressure
