SES-15S04-8N0.5R
Features & Applications
Medical and Auto Industries
Smart Home Applications
Small and Discrete, packed in reel
Wide Frequency Response
Reflow soldering 260ºC
| Height | 4 mm |
|---|---|
| Length | 15 mm |
| Width | 15 mm |
| SPL | 77.5 dB |
| Impedance | 8 Ω |
| Frequency | 0.85 kHz |
| Power | 0.5 W |
| Mounting | SMD |
We are sorry, the datasheet is not available here, please send us a message so that we can help.
Electrical Specifications
| Characteristic | Minimum | Rated | Maximum | Notes |
|---|---|---|---|---|
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 77.5 | 87dB ± 3 at 10cm Normal Power Input | ||
| Power W | 0.5 | 0.8 | ||
| Frequency kHz | 0.85 | 20 | (SPL_max - 10)dB at Frequency Min and Frequency Max | |
| Available Input Impedance Ω | 8 | 8 Ω ± 15% Rated Impedance | ||
| Width mm | 15 | 15 | ||
| Height mm | 4 | |||
| Weight g | 1.5 | |||
| Mounting | Surface Mount | |||
| Termination | surface mount |

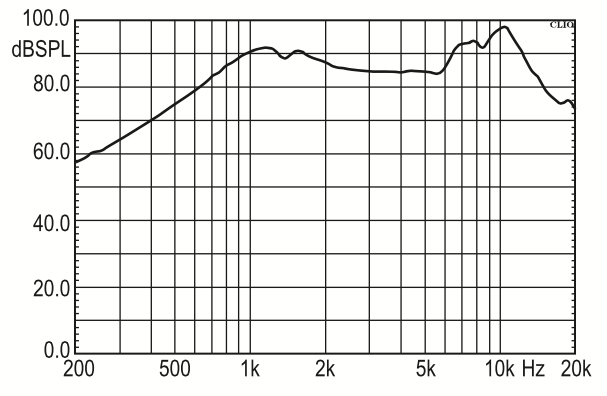

Characteristic Response

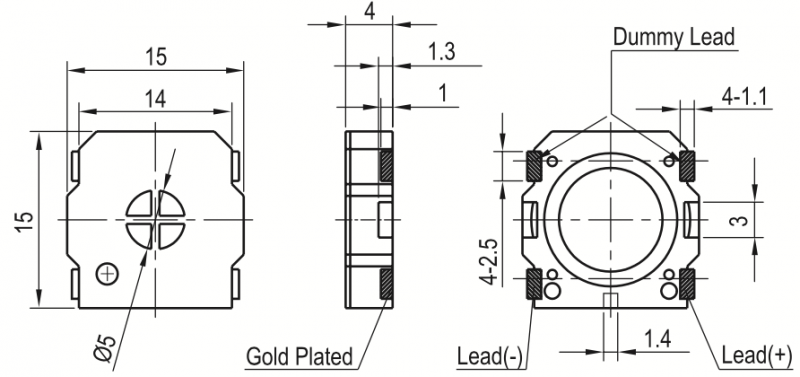

Dimension Drawing

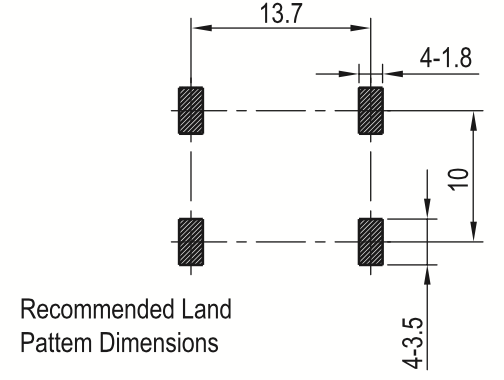

Schematic Diagram
