SAC-102S36.5-8F6R
Features & Applications
High Fidelity
Vehicle Applications
| Height | 36.5 mm |
|---|---|
| Length | 102 mm |
| Width | 102 mm |
| SPL | 97.5 dB |
| Impedance | 8 Ω |
| Frequency | 0.23 kHz |
| Power | 6 W |
| Mounting | Chassis Mount |
We are sorry, the datasheet is not available here, please send us a message so that we can help.
Electrical Specifications
| Characteristic | Minimum | Rated | Maximum | Notes |
|---|---|---|---|---|
| Type of Magnet | NdFeB | |||
| Type of Frame | Metal | |||
| Type of Diaphragm | PET | |||
| Sound Pressure Level dB at 30cm | 97.5 | measured 93±3dB At 1W/0.5M 0.4;0.5,0.6;0.8K Hz AVE | ||
| Power W | 6 | 10 | ||
| Frequency kHz | 0.1 | 0.23 | 10 | within 20dB |
| Available Input Impedance Ω | 8 | At 0.6 kHz and 1.0V | ||
| Width mm | 102 | 102 | ||
| Height mm | 36.5 | |||
| Mounting | Chassis Mount | |||
| Termination | lead wire |

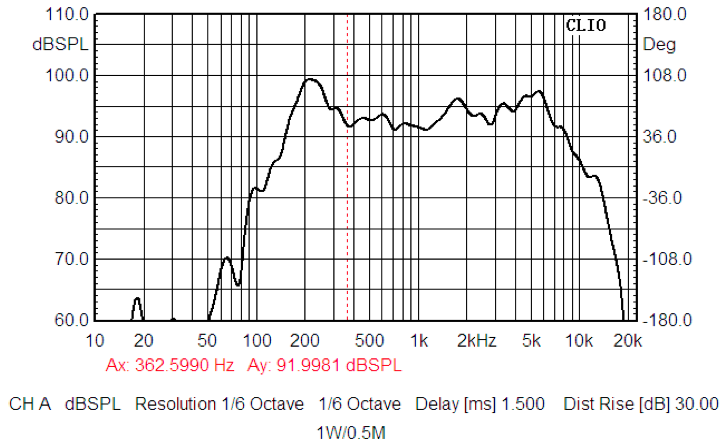

Characteristic Response

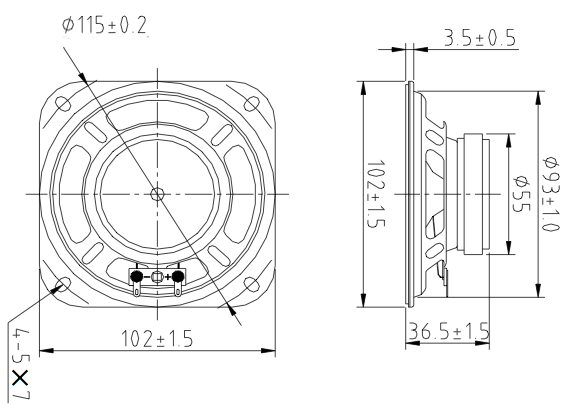

Dimension Drawing
