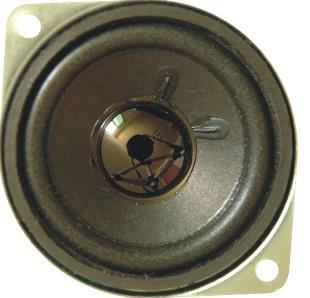

SWC-53R30-4N3R2H
Features & Applications
Cone
Multimedia Applications
Low Frequency
High Power
| Diameter | 53 mm |
|---|---|
| Height | 30 mm |
| SPL | 85.44 dB |
| Impedance | 4 Ω |
| Frequency | 0.2 kHz |
| Power | 3 W |
We are sorry, the datasheet is not available here, please send us a message so that we can help.
Electrical Specifications
| Characteristic | Minimum | Rated | Maximum | Notes |
|---|---|---|---|---|
| Type of Magnet | NdFeB | |||
| Type of Frame | Plastic | |||
| Type of Diaphragm | Complex | |||
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 85.44 | Measured 81±3dB at 3W and 50cm. | ||
| Power W | 3 | 5 | ||
| Frequency kHz | 0.2 | 0.2 | 20 | |
| Available Input Impedance Ω | 4 | 4 | 64 | |
| Width mm | 53 | |||
| Height mm | 30 |

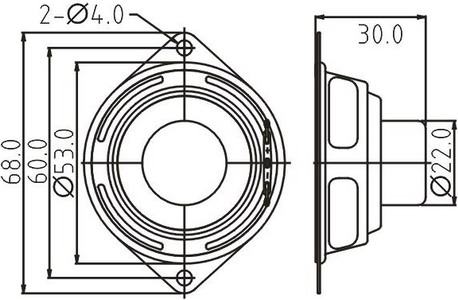

Dimension Drawing
