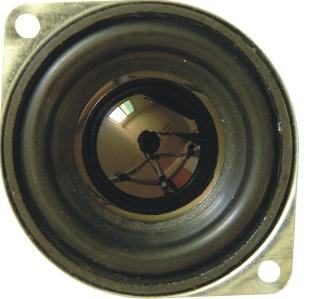

SWC-52R30.4-4N3R2H
Features & Applications
Cone
Voice Applications
High Profile
| Diameter | 52 mm |
|---|---|
| Height | 30.4 mm |
| SPL | 82.44 dB |
| Impedance | 4 Ω |
| Frequency | 0.16 kHz |
| Power | 3 W |
We are sorry, the datasheet is not available here, please send us a message so that we can help.
Electrical Specifications
| Characteristic | Minimum | Rated | Maximum | Notes |
|---|---|---|---|---|
| Type of Magnet | NdFeB | |||
| Type of Frame | Metal | |||
| Type of Diaphragm | Complex | |||
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 82.44 | Measured 78±3dB at 3W and 50cm. | ||
| Power W | 3 | 5 | ||
| Frequency kHz | 0.16 | 0.16 | 18 | |
| Available Input Impedance Ω | 4 | 4 | 64 | |
| Width mm | 52 | |||
| Height mm | 30.4 |

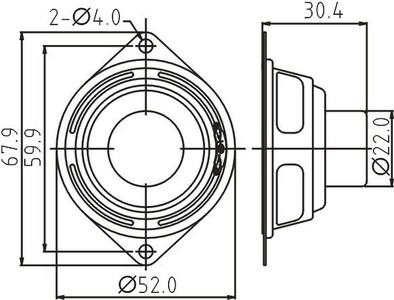

Dimension Drawing
