SWC-57R11.8-32N0.3R3H
Features & Applications
Cone
Voice Applications
Low profile
| Diameter | 57 mm |
|---|---|
| Height | 11.8 mm |
| SPL | 91.44 dB |
| Impedance | 32 Ω |
| Frequency | 0.4 kHz |
| Power | 0.3 W |
We are sorry, the datasheet is not available here, please send us a message so that we can help.
Electrical Specifications
| Characteristic | Minimum | Rated | Maximum | Notes |
|---|---|---|---|---|
| Type of Magnet | NdFeB | |||
| Type of Frame | Metal | |||
| Type of Diaphragm | Paper | |||
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 91.44 | Measured 87±3dB at 0.3W and 50cm. | ||
| Power W | 0.3 | 0.5 | ||
| Frequency kHz | 0.4 | 0.4 | 4 | |
| Available Input Impedance Ω | 4 | 32 | 64 | |
| Width mm | 57 | |||
| Height mm | 11.8 |

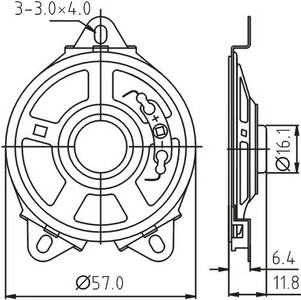

Dimension Drawing
