SED-64R19-8N1R
Features & Applications
High sound volume: 91dB at 1 meter
Suitable for Medical applications and industrial uses
| Diameter | 64 mm |
|---|---|
| Height | 19.35 mm |
| SPL | 100.5 dB |
| Impedance | 8 Ω |
| Frequency | 0.34 kHz |
| Power | 1 W |
We are sorry, the datasheet is not available here, please send us a message so that we can help.
Electrical Specifications
| Characteristic | Minimum | Rated | Maximum | Notes |
|---|---|---|---|---|
| Type of Magnet | NdFeB | |||
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 100.5 | 91dB at 1m under normal power | ||
| Power W | 1 | 2 | ||
| Frequency kHz | 0.34 | 20 | ±20% | |
| Available Input Impedance Ω | 8 | 8Ω±15% | ||
| Width mm | 64 | |||
| Height mm | 19.35 | |||
| Weight g | 48 | |||
| Termination | lead wire |

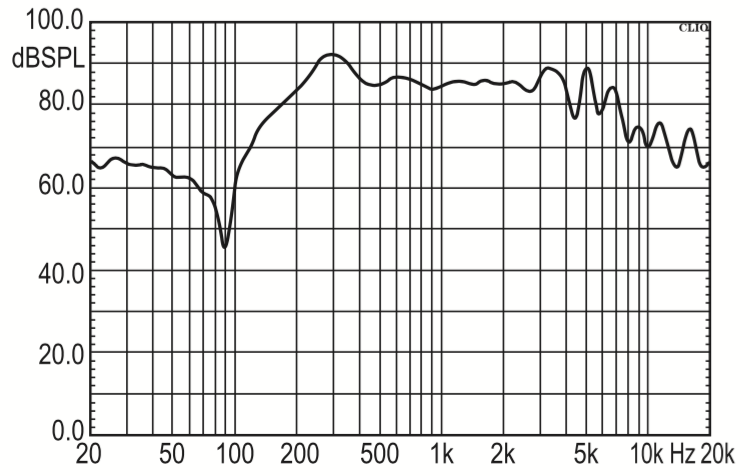

Characteristic Response

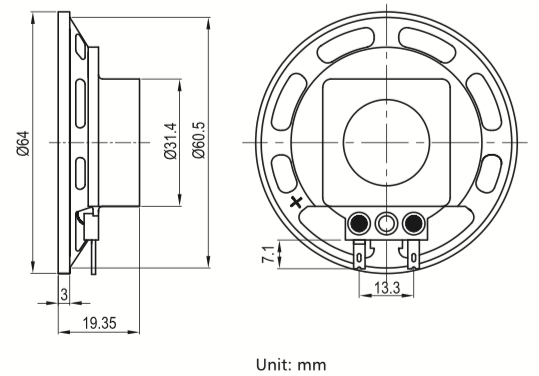

Dimension Drawing
