SEM-13R3.1-8N0.2R
Features & Applications
Laptop, Medical and Telecommunication applications
Alarm and Monitoring.
High sensitivity and Wide Frequency Response
| Diameter | 13 mm |
|---|---|
| Height | 5.1 mm |
| SPL | 80.5 dB |
| Impedance | 8 Ω |
| Frequency | 1 kHz |
| Power | 0.2 W |
We are sorry, the datasheet is not available here, please send us a message so that we can help.
Electrical Specifications
| Characteristic | Minimum | Rated | Maximum | Notes |
|---|---|---|---|---|
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 80.5 | 90dB ± 3 at 10cm Normal Power Input | ||
| Power W | 0.2 | 0.5 | ||
| Frequency kHz | 1 | 20 | (SPL_max - 10)dB at Frequency Min and Frequency Max | |
| Available Input Impedance Ω | 8 | 8 Ω ± 15% Rated Impedance | ||
| Width mm | 13 | 13 | ||
| Height mm | 5.1 | |||
| Termination | solder tab |

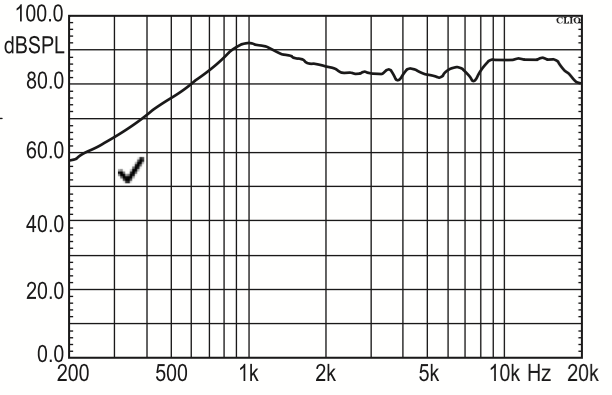

Characteristic Response

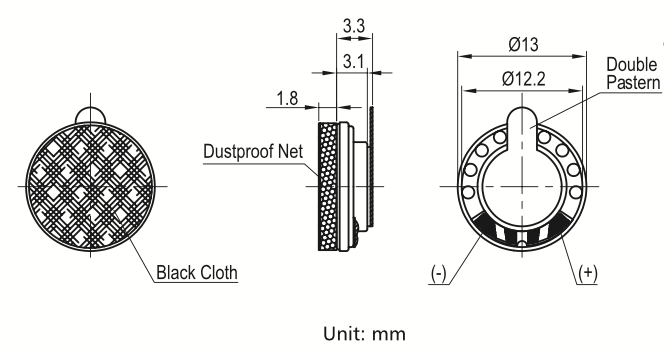

Dimension Drawing
