SEM-15R4.0-8N1R
Features & Applications
No Magnetic Leakage
Small Size
High sensitivity and Wide Frequency Response
Applications: Laptops, medical devices, telecom
Alarm
| Diameter | 15 mm |
|---|---|
| Height | 4 mm |
| SPL | 85 dB |
| Impedance | 8 Ω |
| Frequency | 0.8 kHz |
| Power | 1 W |
| Mounting | Custom |
We are sorry, the datasheet is not available here, please send us a message so that we can help.
Electrical Specifications
| Characteristic | Minimum | Rated | Maximum | Notes |
|---|---|---|---|---|
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 85 | SPL=94±3 dB at 10cm and normal power | ||
| Power W | 1 | 1.2 | ||
| Frequency kHz | 0.8 | 20 | (±20%) and 10dB at the corner frequencies Frated and Fmax | |
| Available Input Impedance Ω | 8 | 8Ω ± 15% | ||
| Width mm | 15 | 15 | ||
| Height mm | 4 | |||
| Weight g | 1.5 | |||
| Mounting | Custom |

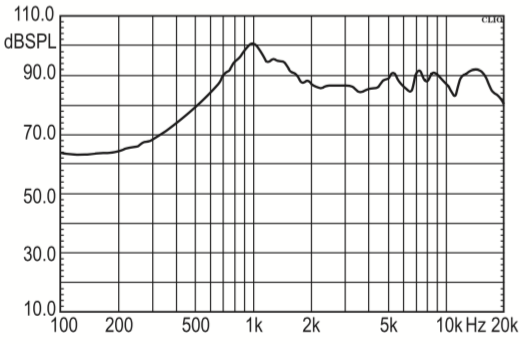

Characteristic Response

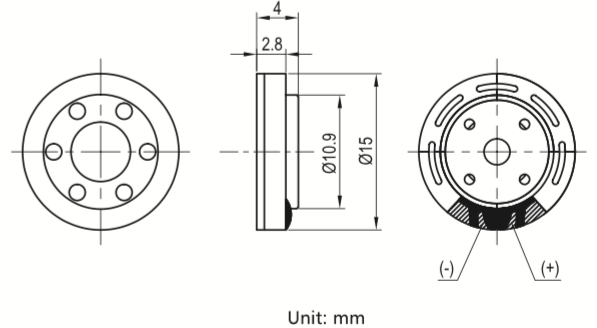

Dimension Drawing
