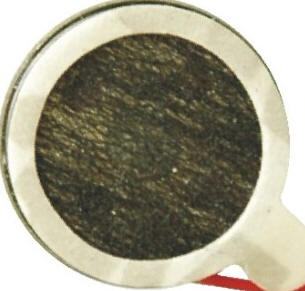

SWM-15R3.8-8N0.8R
Features & Applications
Mylar
Waterproof
| Diameter | 15 mm |
|---|---|
| Height | 3.8 mm |
| SPL | 82.46 dB |
| Impedance | 8 Ω |
| Frequency | 0.92 kHz |
| Power | 0.8 W |
We are sorry, the datasheet is not available here, please send us a message so that we can help.
Electrical Specifications
| Characteristic | Minimum | Rated | Maximum | Notes |
|---|---|---|---|---|
| Type of Magnet | NdFeB | |||
| Type of Frame | Metal | |||
| Type of Diaphragm | PET | |||
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 82.46 | Measured 92±3dB at 0.8W and 10cm. | ||
| Power W | 0.8 | 0 | ||
| Frequency kHz | 0.92 | 0.92 | 20 | |
| Available Input Impedance Ω | 8 | 8 | 150 | |
| Width mm | 15 | |||
| Height mm | 3.8 |

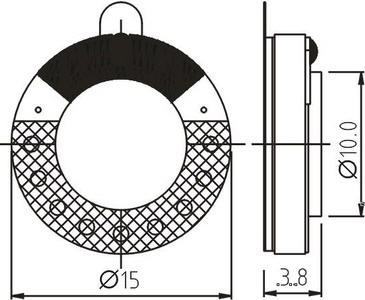

Dimension Drawing
