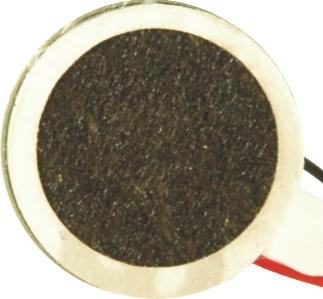

SWM-17R4.0-8N0.5R
Features & Applications
Mylar
Waterproof
| Diameter | 17 mm |
|---|---|
| Height | 4 mm |
| SPL | 78.46 dB |
| Impedance | 8 Ω |
| Frequency | 0.9 kHz |
| Power | 0.5 W |
We are sorry, the datasheet is not available here, please send us a message so that we can help.
Electrical Specifications
| Characteristic | Minimum | Rated | Maximum | Notes |
|---|---|---|---|---|
| Type of Magnet | NdFeB | |||
| Type of Frame | Metal | |||
| Type of Diaphragm | PET | |||
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 78.46 | Measured 88±3dB at 0.5W and 10cm. | ||
| Power W | 0.5 | 0 | ||
| Frequency kHz | 0.9 | 0.9 | 20 | |
| Available Input Impedance Ω | 8 | 8 | 150 | |
| Width mm | 17 | |||
| Height mm | 4 |

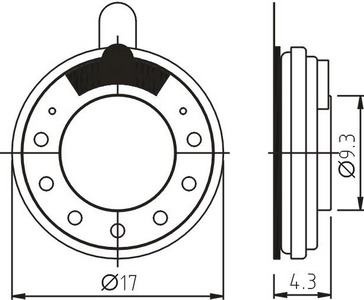

Dimension Drawing
