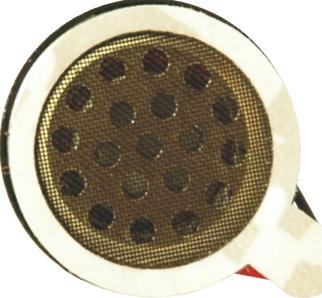

SWM-16R4.2-8N0.5R
Features & Applications
Mylar
Full Range Sound
Natural Sound & Music
Slim size
Waterproof
| Diameter | 16 mm |
|---|---|
| Height | 4.2 mm |
| SPL | 83.46 dB |
| Impedance | 8 Ω |
| Frequency | 0.95 kHz |
| Power | 0.5 W |
We are sorry, the datasheet is not available here, please send us a message so that we can help.
Electrical Specifications
| Characteristic | Minimum | Rated | Maximum | Notes |
|---|---|---|---|---|
| Type of Magnet | NdFeB | |||
| Type of Frame | Plastic | |||
| Type of Diaphragm | PET | |||
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 83.46 | Measured 93±3dB at 0.5W and 10cm. | ||
| Power W | 0.5 | 0 | ||
| Frequency kHz | 0.95 | 0.95 | 20 | |
| Available Input Impedance Ω | 8 | 8 | 150 | |
| Width mm | 16 | |||
| Height mm | 4.2 |

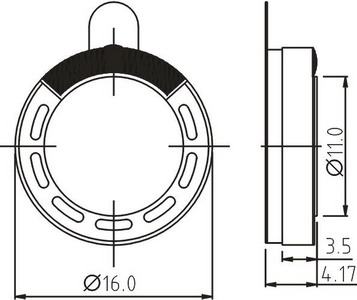

Dimension Drawing
