SCM-50R18.5-8N0.5R
Features & Applications
RoHS
0.5W
| Diameter | 50 mm |
|---|---|
| Height | 18.5 mm |
| SPL | 87.5 dB |
| Impedance | 8 Ω |
| Frequency | 0.32 kHz |
| Power | 0.5 W |
We are sorry, the datasheet is not available here, please send us a message so that we can help.
Electrical Specifications
| Characteristic | Minimum | Rated | Maximum | Notes |
|---|---|---|---|---|
| Type of Magnet | NdFeB | |||
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 87.5 | 97dB(0.1W/0.1m) ± 3 dB at AVE 0.3K 0.4K 0.5K 0.6K Hz | ||
| Power W | 0.5 | 1 | ||
| Frequency kHz | 0.2 | 0.32 | 10 | Distortion : Less than 5% at 1KHz input 0.1W and 0.1m. Buzz & rattle not audible at 2.0V sine Wave between Fo to 20KHz |
| Available Input Impedance Ω | 8 | ± 15% | ||
| Temperature ºC | -30 | 70 | Operating Temperature. Storage : -40C to 85C | |
| Width mm | 50 | 50 | ||
| Height mm | 18.5 | |||
| Termination | lead wire |

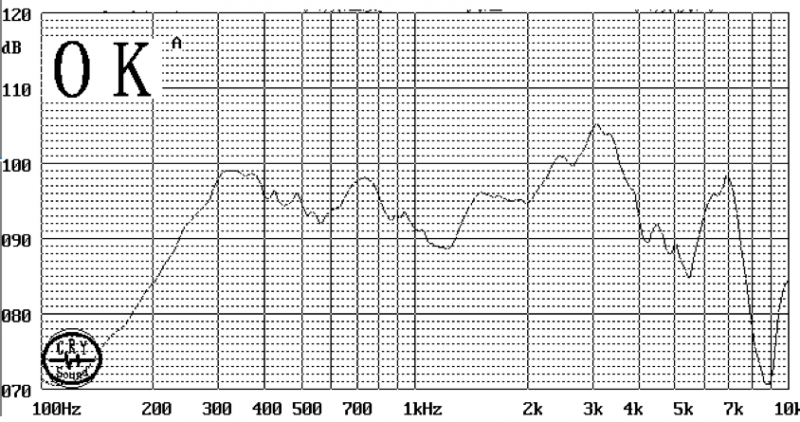

Characteristic Response

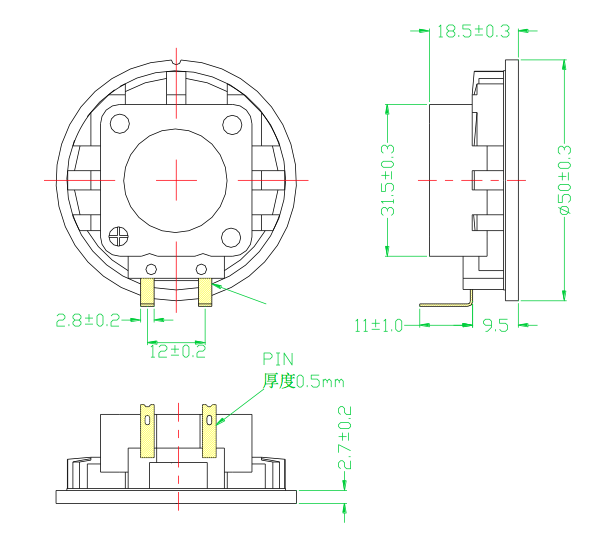

Dimension Drawing

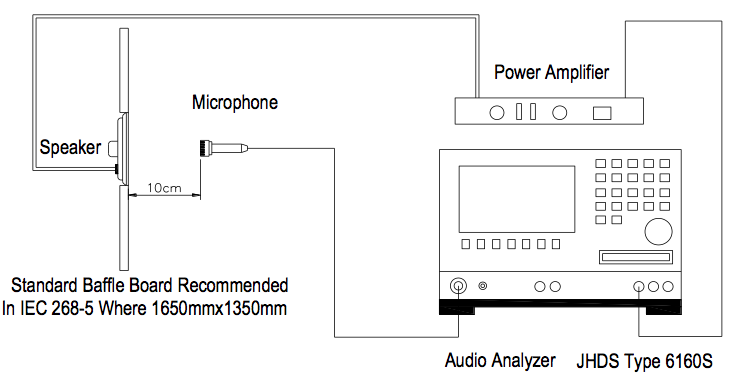

Measurement set-up.
