SED-50R12-25N0.5R
Features & Applications
Medical Applications
Loud
| Diameter | 50 mm |
|---|---|
| Height | 12.2 mm |
| SPL | 90.4 dB |
| Impedance | 25 Ω |
| Frequency | 0.48 kHz |
| Power | 0.5 W |
We are sorry, the datasheet is not available here, please send us a message so that we can help.
Electrical Specifications
| Characteristic | Minimum | Rated | Maximum | Notes |
|---|---|---|---|---|
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 90.4 | 86dB±3 at 0.5m (normal power input) | ||
| Power W | 0.5 | 0.8 | ||
| Frequency kHz | 0.48 | 4 | Frequency range is SPL-10dB : F0 - Fmax | |
| Available Input Impedance Ω | 25 | Rated impedance is Ω±15% | ||
| Width mm | 50 | 50 | ||
| Height mm | 12.2 | |||
| Weight g | 15.5 |

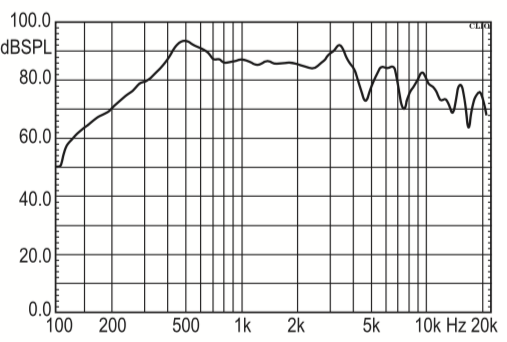

Characteristic Response

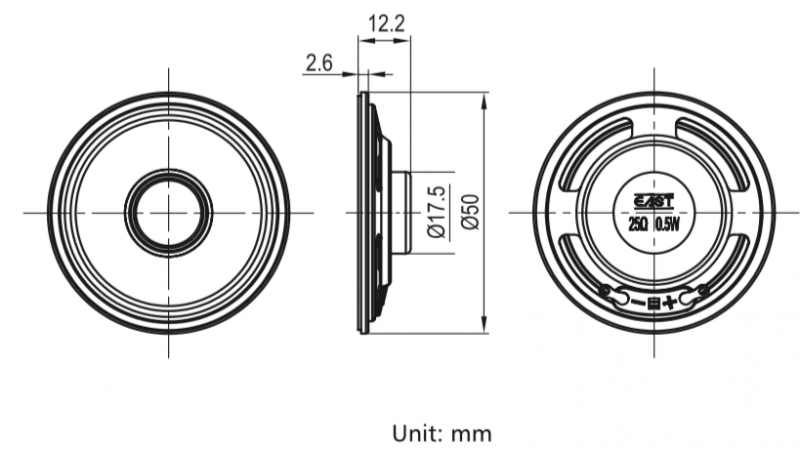

Dimension Drawing
