SED-45R16-8N1R
Features & Applications
Compact size and high sensitivity
Sound pressure level is 85dB at 3m (10 feet)
Excellent alarm capabilities
| Diameter | 45 mm |
|---|---|
| SPL | 105 dB |
| Impedance | 8 Ω |
| Frequency | 1.2 kHz |
| Power | 1 W |
We are sorry, the datasheet is not available here, please send us a message so that we can help.
Electrical Specifications
| Characteristic | Minimum | Rated | Maximum | Notes |
|---|---|---|---|---|
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 105 | measure 85dB at 3 meters (10 feet) | ||
| Power W | 1 | 2 | ||
| Frequency kHz | 1.2 | 5 | SPL is 10dB at corner frequencies | |
| Available Input Impedance Ω | 8 | |||
| Weight g | 25 |

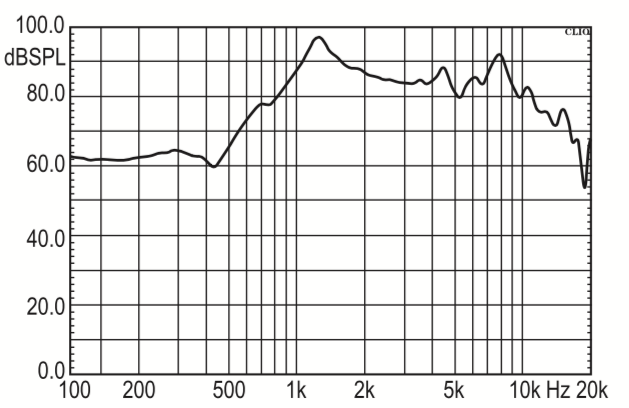

Characteristic Response

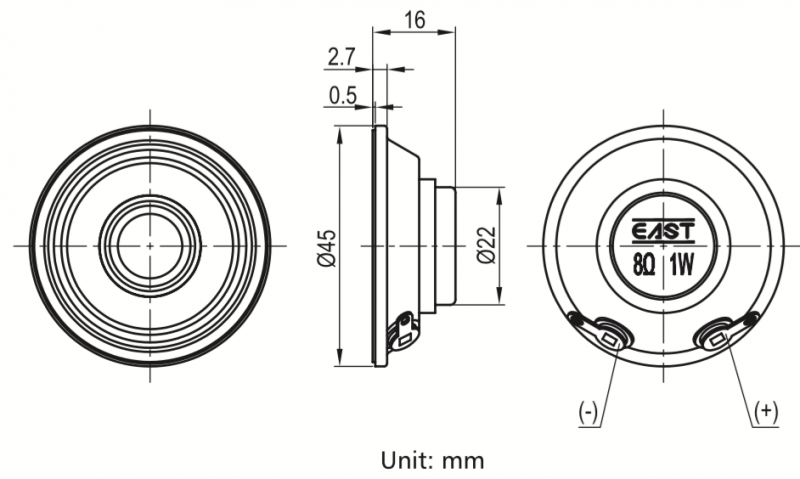

Dimension Drawing
