SEM-23R13-8N0.25R
Features & Applications
Compliant IEC60601-1-8 for medical alarm
Small Size
Robust Construction
RoHS Compliant
Any pulse rate and inter-burst interval
| Diameter | 23 mm |
|---|---|
| Height | 13 mm |
| SPL | 78.5 dB |
| Impedance | 8 Ω |
| Frequency | 0.95 kHz |
| Power | 0.25 W |
| Mounting | Through Hole |
We are sorry, the datasheet is not available here, please send us a message so that we can help.
Electrical Specifications
| Characteristic | Minimum | Rated | Maximum | Notes |
|---|---|---|---|---|
| Type of Magnet | NdFeB | |||
| Type of Frame | Plastic | |||
| Type of Diaphragm | Mylar | |||
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 78.5 | Measured at 88±3dB 0.1M / 1 W (1500,2000,2500,3000Hz Average ) and 1.4V | ||
| Power W | 0.25 | 0.5 | Rated power operating continuously for 100 hours at 1.4V. Max power signal on for 1 min & 2 min off, cycling for 10 times and at 2V | |
| Frequency kHz | 0.95 | Rated frequency ± 20%. The input frequency is 325Hz. | ||
| Available Input Impedance Ω | 8 | Rated Impedance ± 15% | ||
| Temperature ºC | -20 | 60 | ||
| Width mm | 23 | |||
| Height mm | 13 | |||
| Weight g | 5 | |||
| Mounting | Through Hole | |||
| Termination | pin |

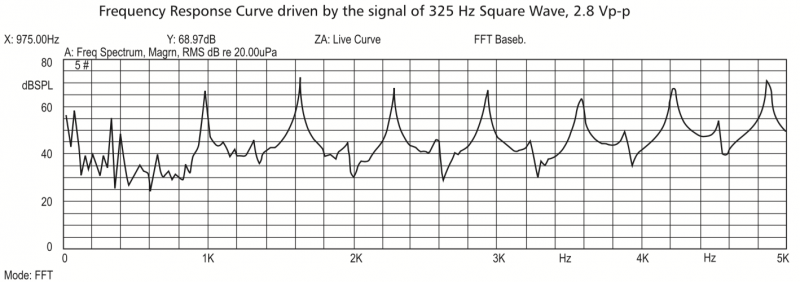

Characteristic Response

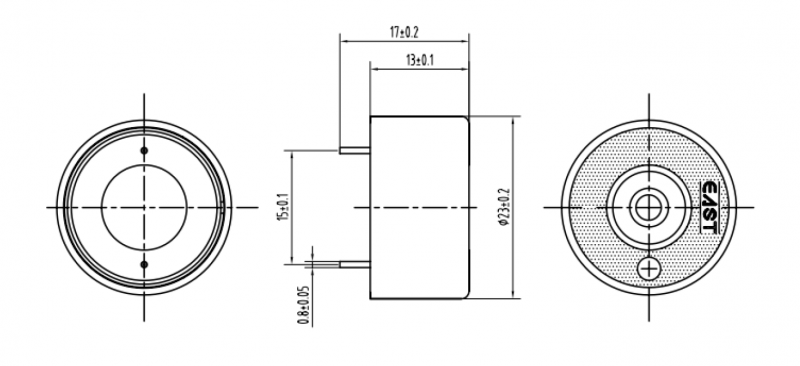

Dimension Drawing

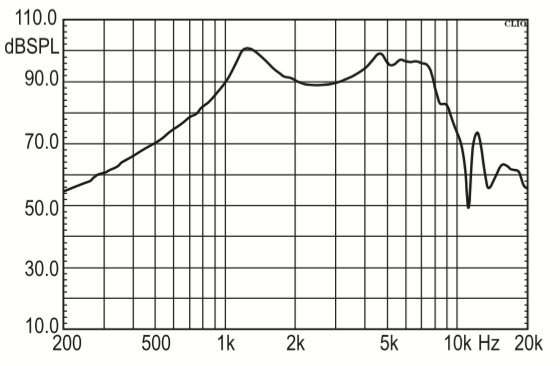

Frequency Response
