SEM-36R4.6-8N0.25R
Features & Applications
Compact size and high sensitivity
Wide bandwidth sound
Excellent for Security and Safety Alarms
| Diameter | 36 mm |
|---|---|
| Height | 4 mm |
| SPL | 89 dB |
| Impedance | 8 Ω |
| Frequency | 0.5 kHz |
| Power | 0.25 W |
We are sorry, the datasheet is not available here, please send us a message so that we can help.
Electrical Specifications
| Characteristic | Minimum | Rated | Maximum | Notes |
|---|---|---|---|---|
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 89 | at rated power and at 30cm | ||
| Power W | 0.25 | 0.5 | ||
| Frequency kHz | 0.5 | 4.5 | at SPL 10dB below peak | |
| Available Input Impedance Ω | 8 | ±15% | ||
| Width mm | 36 | 36 | ||
| Height mm | 4 | |||
| Weight g | 9.5 |

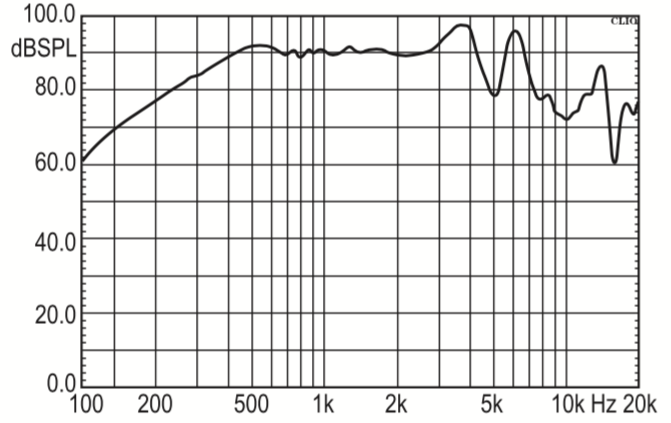

Characteristic Response

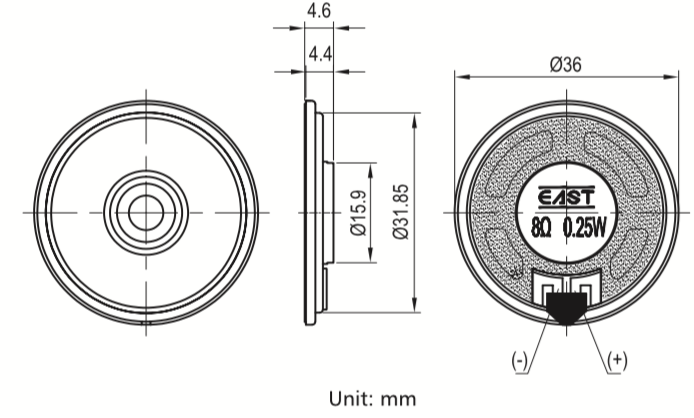

Dimension Drawing
