SED-40R6.5-8N0.5RC
Features & Applications
Loud
| Diameter | 40 mm |
|---|---|
| Height | 6.5 mm |
| SPL | 88.5 dB |
| Impedance | 8 Ω |
| Frequency | 0.75 kHz |
| Power | 0.5 W |
| Mounting | Custom |
We are sorry, the datasheet is not available here, please send us a message so that we can help.
Electrical Specifications
| Characteristic | Minimum | Rated | Maximum | Notes |
|---|---|---|---|---|
| Type of Magnet | NdFeB | |||
| Type of Frame | Metal | |||
| Type of Diaphragm | Paper | |||
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 88.5 | measured 98±3dB 0.1M / 0.5W (1000,1200,1500,2000Hz average ) | ||
| Power W | 0.5 | 0.8 | Rated power operating continuously for 100 hours @ 2V. Max Power: Stimulant signal for 1 min. on & 2 min. off, cycling for 10 times @ 2.52V | |
| Frequency kHz | 0.3 | 0.75 | 5 | |
| Available Input Impedance Ω | 8 | ± 15 % at 1500Hz | ||
| Temperature ºC | -20 | 60 | operating temperature | |
| Width mm | 40 | 40 | ||
| Height mm | 6.5 | |||
| Mounting | Custom | |||
| Termination | lead wire | |||
| Buzz / Rattle | None @ 0.3m with sine wave from 100Hz to 2kHz input/rated noise power |

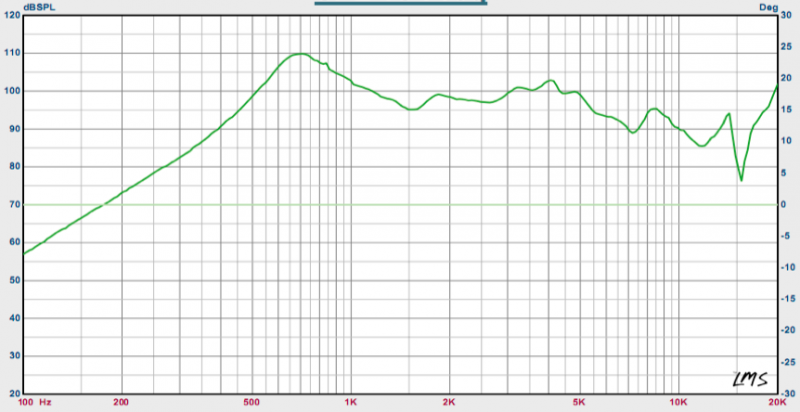

Characteristic Response

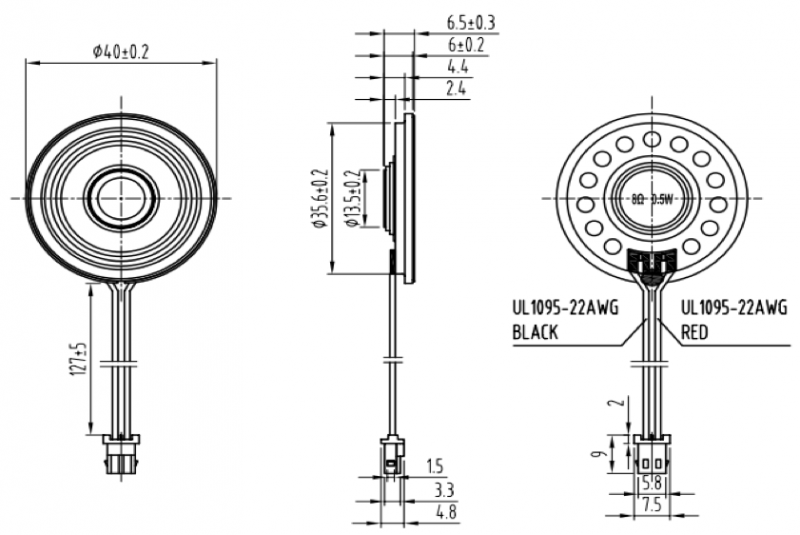

Dimension Drawing

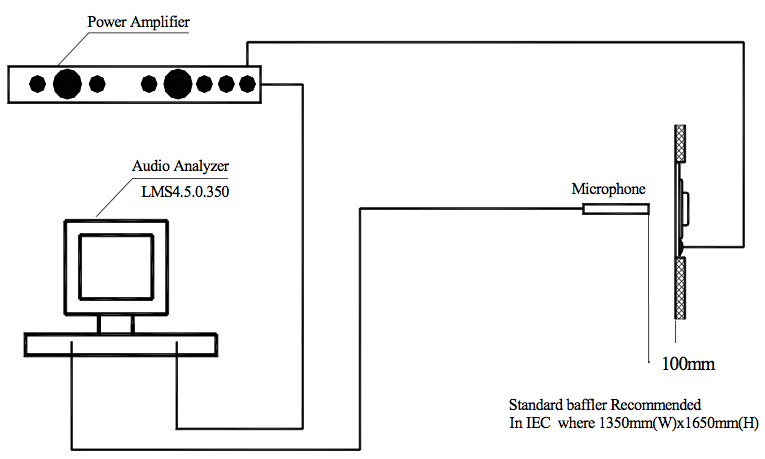

Electrical Test
