sem-23R4.0-32N0.02R
| Diameter | 23 mm |
|---|---|
| Height | 4 mm |
| SPL | 77.2 dB |
| Impedance | 32 Ω |
| Frequency | 0.6 kHz |
| Power | 0.02 W |
We are sorry, the datasheet is not available here, please send us a message so that we can help.
Electrical Specifications
| Characteristic | Minimum | Rated | Maximum | Notes |
|---|---|---|---|---|
| Sound Pressure Level dB at 30cm | 77.2 | 92±3dB at normal power and 1cm | ||
| Power W | 0.02 | 0.05 | ||
| Frequency kHz | 0.6 | 20 | measuring 10dB down at the rated and max frequencies | |
| Available Input Impedance Ω | 32 | |||
| Width mm | 23 | 23 | ||
| Height mm | 4 | |||
| Weight g | 3.1 |

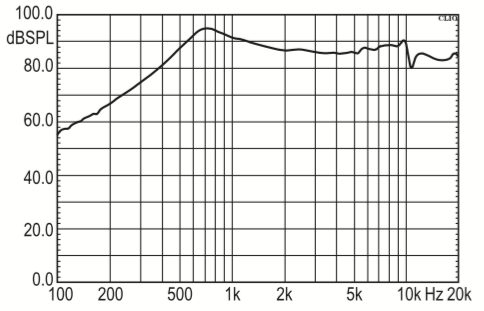

Characteristic Response

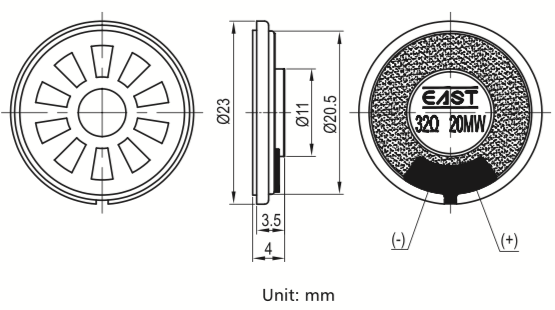

Dimension Drawing
