SEM-36R5.1-4N1R
| Diameter | 36 mm |
|---|---|
| Height | 5.1 mm |
| Impedance | 4 Ω |
| Frequency | 0.45 kHz |
| Power | 1 W |
| Mounting | Custom |
We are sorry, the datasheet is not available here, please send us a message so that we can help.
Electrical Specifications
| Characteristic | Minimum | Rated | Maximum | Notes |
|---|---|---|---|---|
| Type of Magnet | NdFeB | |||
| Type of Frame | Metal | |||
| Type of Diaphragm | PET | |||
| Power W | 1 | 1.5 | ||
| Frequency kHz | 0.2 | 0.45 | 20 | Rated frequency ± 20% |
| Available Input Impedance Ω | 4 | Rated Impedance ± 15% | ||
| Temperature ºC | -30 | 85 | ||
| Width mm | 36 | |||
| Height mm | 5.1 | |||
| Weight g | 9 | |||
| Mounting | Custom | |||
| Termination | lead wire |

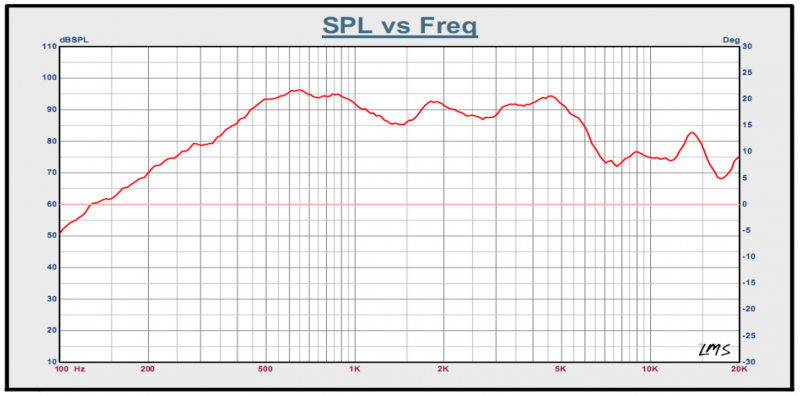

Characteristic Response

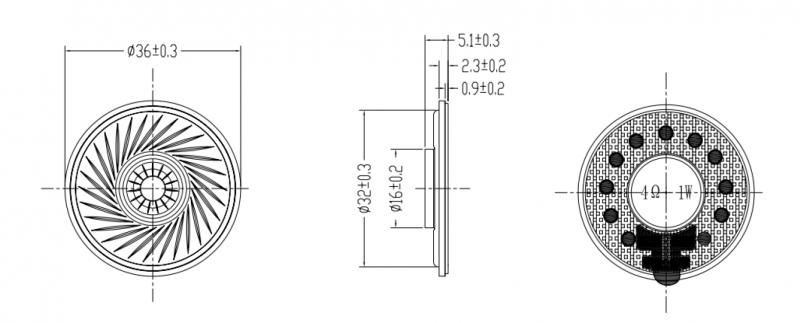

Dimension Drawing
