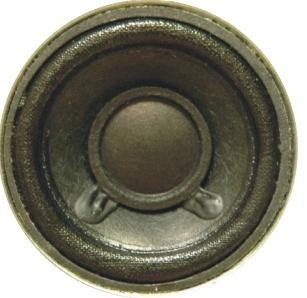

SWC-36R16.8-4N2R
Features & Applications
Cone
Multimedia Applications
Small size
Low Frequency
High Power
| Diameter | 36 mm |
|---|---|
| Height | 16.8 mm |
| SPL | 85 dB |
| Impedance | 8 Ω |
| Frequency | 0.25 kHz |
| Power | 2 W |
We are sorry, the datasheet is not available here, please send us a message so that we can help.
Electrical Specifications
| Characteristic | Minimum | Rated | Maximum | Notes |
|---|---|---|---|---|
| Type of Magnet | NdFeB | |||
| Type of Frame | Plastic | |||
| Type of Diaphragm | Complex | |||
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 85 | Measured 85±3dB at 2W and 30cm. | ||
| Power W | 2 | 3 | ||
| Frequency kHz | 0.25 | 0.25 | 20 | |
| Available Input Impedance Ω | 8 | 8 | 64 | |
| Width mm | 36 | |||
| Height mm | 16.8 |

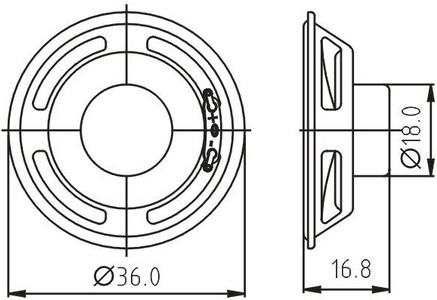

Dimension Drawing
