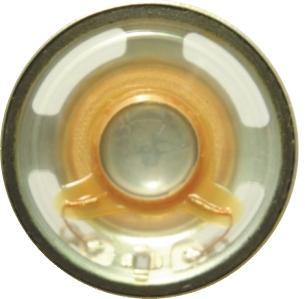

SWC-40R10.0-16N0.25R
Features & Applications
Cone
Voice Applications
Water Resistant
| Diameter | 40 mm |
|---|---|
| Height | 10 mm |
| SPL | 87.44 dB |
| Impedance | 16 Ω |
| Frequency | 0.9 kHz |
| Power | 0.25 W |
We are sorry, the datasheet is not available here, please send us a message so that we can help.
Electrical Specifications
| Characteristic | Minimum | Rated | Maximum | Notes |
|---|---|---|---|---|
| Type of Magnet | NdFeB | |||
| Type of Frame | Metal | |||
| Type of Diaphragm | PET | |||
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 87.44 | Measured 83±3dB at 0.25W and 50cm. | ||
| Power W | 0.25 | 0.5 | ||
| Frequency kHz | 0.9 | 0.9 | 5 | |
| Available Input Impedance Ω | 4 | 16 | 64 | |
| Width mm | 40 | |||
| Height mm | 10 |

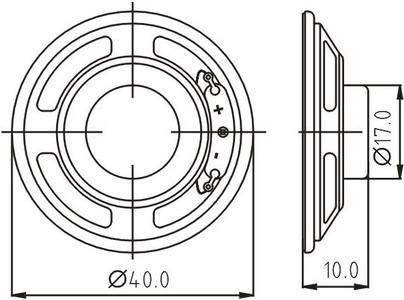

Dimension Drawing
