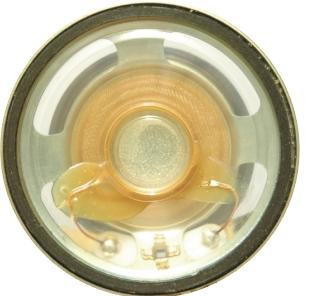

SWC-45R16-45F0.5R
Features & Applications
Cone
Voice Applications
Water Resistant
| Diameter | 45 mm |
|---|---|
| Height | 16 mm |
| SPL | 86.44 dB |
| Impedance | 45 Ω |
| Frequency | 0.58 kHz |
| Power | 0.5 W |
We are sorry, the datasheet is not available here, please send us a message so that we can help.
Electrical Specifications
| Characteristic | Minimum | Rated | Maximum | Notes |
|---|---|---|---|---|
| Type of Magnet | Ferrite | |||
| Type of Frame | Metal | |||
| Type of Diaphragm | PET | |||
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 86.44 | Measured 82±3dB at 0.5W and 50cm. | ||
| Power W | 0.5 | 1 | ||
| Frequency kHz | 0.58 | 0.58 | 7 | |
| Available Input Impedance Ω | 4 | 45 | 64 | |
| Width mm | 45 | |||
| Height mm | 16 |

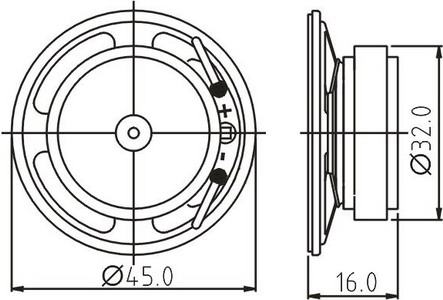

Dimension Drawing
