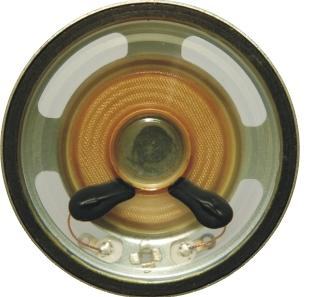

SWC-50R10.7-8N0.5R
Features & Applications
Cone
Voice Applications
High Profile
| Diameter | 50 mm |
|---|---|
| Height | 10.7 mm |
| SPL | 87.44 dB |
| Impedance | 8 Ω |
| Frequency | 0.45 kHz |
| Power | 0.5 W |
We are sorry, the datasheet is not available here, please send us a message so that we can help.
Electrical Specifications
| Characteristic | Minimum | Rated | Maximum | Notes |
|---|---|---|---|---|
| Type of Magnet | NdFeB | |||
| Type of Frame | Metal | |||
| Type of Diaphragm | PET | |||
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 87.44 | Measured 83±3dB at 0.5W and 50cm. | ||
| Power W | 0.5 | 1 | ||
| Frequency kHz | 0.45 | 0.45 | 2 | |
| Available Input Impedance Ω | 4 | 8 | 64 | |
| Width mm | 50 | |||
| Height mm | 10.7 |

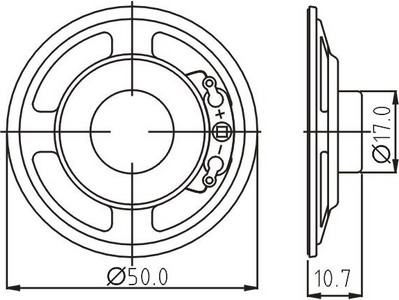

Dimension Drawing
