SWC-50R17.2-8F2R
Features & Applications
Cone
Voice Applications
Water Resistant
| Diameter | 50 mm |
|---|---|
| Height | 17.2 mm |
| SPL | 88.44 dB |
| Impedance | 8 Ω |
| Frequency | 0.98 kHz |
| Power | 2 W |
We are sorry, the datasheet is not available here, please send us a message so that we can help.
Electrical Specifications
| Characteristic | Minimum | Rated | Maximum | Notes |
|---|---|---|---|---|
| Type of Magnet | Ferrite | |||
| Type of Frame | Metal | |||
| Type of Diaphragm | PET | |||
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 88.44 | Measured 84±3dB at 2W and 50cm. | ||
| Power W | 2 | 4 | ||
| Frequency kHz | 0.98 | 0.98 | 5 | |
| Available Input Impedance Ω | 4 | 8 | 64 | |
| Width mm | 50 | |||
| Height mm | 17.2 |

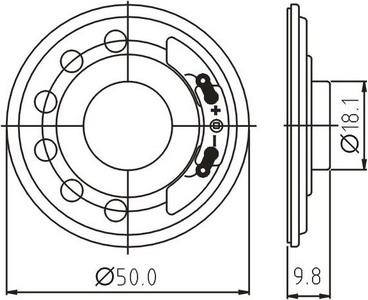

Dimension Drawing
