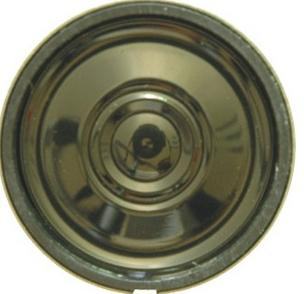

SWM-23R4.0-8N1R
Features & Applications
Mylar
Full Range Sound
Slim size
Waterproof
| Diameter | 23 mm |
|---|---|
| Height | 4 mm |
| SPL | 82.46 dB |
| Impedance | 8 Ω |
| Frequency | 0.95 kHz |
| Power | 1 W |
We are sorry, the datasheet is not available here, please send us a message so that we can help.
Electrical Specifications
| Characteristic | Minimum | Rated | Maximum | Notes |
|---|---|---|---|---|
| Type of Magnet | NdFeB | |||
| Type of Frame | Metal | |||
| Type of Diaphragm | PET | |||
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 82.46 | Measured 92±3dB at 1W and 10cm. | ||
| Power W | 1 | 0 | ||
| Frequency kHz | 0.95 | 0.95 | 10 | |
| Available Input Impedance Ω | 4 | 8 | 150 | |
| Width mm | 23 | |||
| Height mm | 4 |
