SWM-23R5.2-8B1.5R
| Diameter | 23 mm |
|---|---|
| Height | 5.2 mm |
| SPL | 82.5 dB |
| Impedance | 8 Ω |
| Frequency | 0.65 kHz |
| Power | 1.5 W |
We are sorry, the datasheet is not available here, please send us a message so that we can help.
Electrical Specifications
| Characteristic | Minimum | Rated | Maximum | Notes |
|---|---|---|---|---|
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 82.5 | Measured 88±3dB(SPL) at 0.1W and 0.1m. Frequencies: 0.8 / 1.0 / 1.2 / 1.5kHz | ||
| Power W | 1.5 | 2 | ||
| Frequency kHz | 0.65 | ±20% | ||
| Available Input Impedance Ω | 8 | |||
| Width mm | 23 | |||
| Height mm | 5.2 |

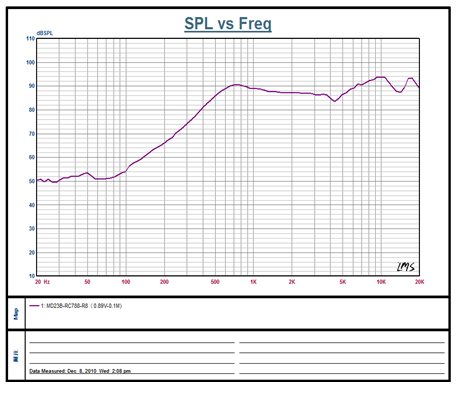

Characteristic Response

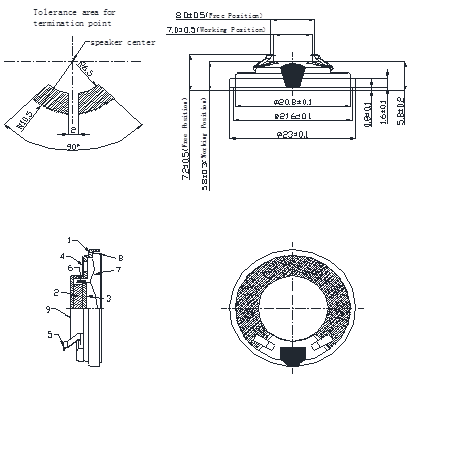

Dimension Drawing
