SWM-27L8.2-8N1R
| Height | 8.2 mm |
|---|---|
| Length | 27 mm |
| Width | 20 mm |
| SPL | 92 dB |
| Impedance | 8 Ω |
| Frequency | 0.85 kHz |
| Power | 1 W |
We are sorry, the datasheet is not available here, please send us a message so that we can help.
Electrical Specifications
| Characteristic | Minimum | Rated | Maximum | Notes |
|---|---|---|---|---|
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 92 | Measured 84±3dB(SPL) at 1W and 0.3m. Frequencies: 1000 / 1200 / 1500 / 2000Hz | ||
| Power W | 1 | 1.5 | ||
| Frequency kHz | 0.85 | ±20% | ||
| Available Input Impedance Ω | 8 | |||
| Width mm | 20 | 27 | ±0.3mm | |
| Height mm | 8.2 | ±0.2mm |

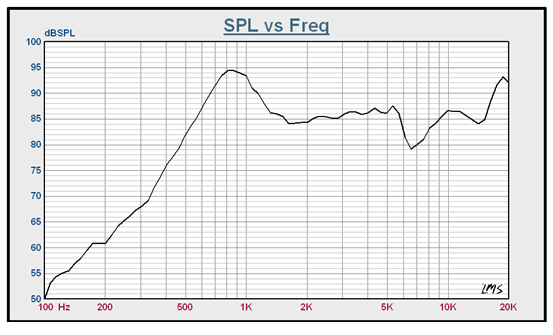

Characteristic Response

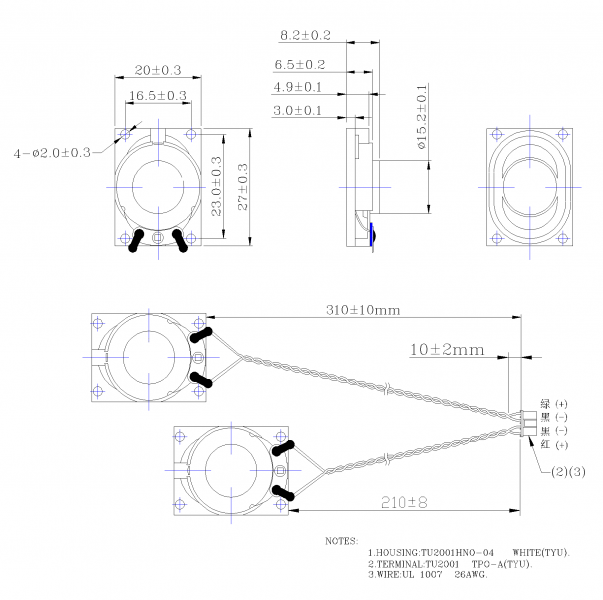

Dimension Drawing
