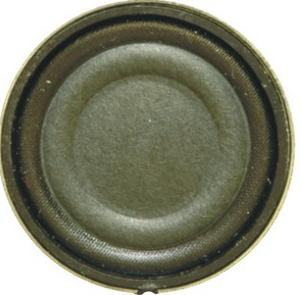

SWM-28R5.4-8N1R
Features & Applications
Mylar
Full Range Sound
Slim size
Waterproof
| Diameter | 28 mm |
|---|---|
| Height | 5.4 mm |
| SPL | 77.46 dB |
| Impedance | 8 Ω |
| Frequency | 0.85 kHz |
| Power | 1 W |
We are sorry, the datasheet is not available here, please send us a message so that we can help.
Electrical Specifications
| Characteristic | Minimum | Rated | Maximum | Notes |
|---|---|---|---|---|
| Type of Magnet | NdFeB | |||
| Type of Frame | Metal | |||
| Type of Diaphragm | PET | |||
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 77.46 | Measured 87±3dB at 1W and 10cm. | ||
| Power W | 1 | 0.5 | ||
| Frequency kHz | 0.85 | 0.85 | 15 | |
| Available Input Impedance Ω | 4 | 8 | 150 | |
| Width mm | 28 | |||
| Height mm | 5.4 |
