SWM-28R7.5-8B1R
| Diameter | 28 mm |
|---|---|
| Height | 7.5 mm |
| SPL | 82.5 dB |
| Impedance | 8 Ω |
| Frequency | 0.75 kHz |
| Power | 1 W |
We are sorry, the datasheet is not available here, please send us a message so that we can help.
Electrical Specifications
| Characteristic | Minimum | Rated | Maximum | Notes |
|---|---|---|---|---|
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 82.5 | Measured 88±3dB(SPL) at 0.1W and 0.1m. Frequencies: 1.0 / 1.2 / 1.5 / 2.0kHz | ||
| Power W | 1 | 2 | ||
| Frequency kHz | 0.75 | ±20% | ||
| Available Input Impedance Ω | 8 | |||
| Width mm | 28 | |||
| Height mm | 7.5 |

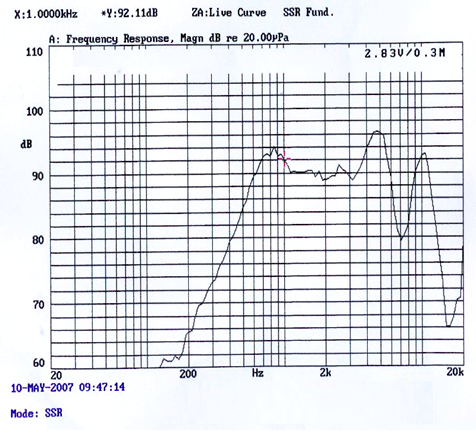

Characteristic Response
Dimension Drawing
