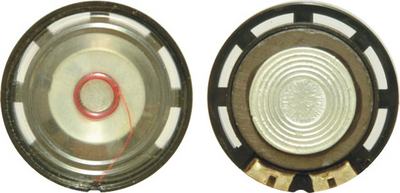

SWM-29R9.0-8F0.25R
Features & Applications
Mylar
Full Range Sound
Slim size
Waterproof
| Diameter | 29 mm |
|---|---|
| Height | 9 mm |
| SPL | 81.46 dB |
| Impedance | 8 Ω |
| Frequency | 0.82 kHz |
| Power | 0.25 W |
We are sorry, the datasheet is not available here, please send us a message so that we can help.
Electrical Specifications
| Characteristic | Minimum | Rated | Maximum | Notes |
|---|---|---|---|---|
| Type of Magnet | NdFeB | |||
| Type of Frame | Plastic | |||
| Type of Diaphragm | PET | |||
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 81.46 | Measured 91±3dB at 0.25W and 10cm. | ||
| Power W | 0.25 | 0.5 | ||
| Frequency kHz | 0.82 | 0.82 | 5 | |
| Available Input Impedance Ω | 4 | 8 | 150 | |
| Width mm | 29 | |||
| Height mm | 9 |

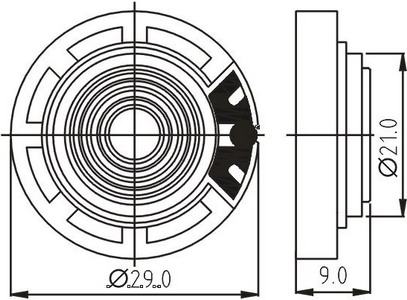

Dimension Drawing
