SWM-30O4.1-8N1R
| Height | 4.1 mm |
|---|---|
| Length | 30 mm |
| Width | 10 mm |
| SPL | 82.5 dB |
| Impedance | 8 Ω |
| Frequency | 1.1 kHz |
| Power | 1 W |
We are sorry, the datasheet is not available here, please send us a message so that we can help.
Electrical Specifications
| Characteristic | Minimum | Rated | Maximum | Notes |
|---|---|---|---|---|
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 82.5 | Measured 83±3dB(SPL) at 0.1W and 0.1m. Frequencies: 1.5 / 2.0 / 2.5 / 3.0kHz | ||
| Power W | 1 | 1.3 | ||
| Frequency kHz | 1.1 | ±20% | ||
| Available Input Impedance Ω | 8 | |||
| Width mm | 10 | 30 | ||
| Height mm | 4.1 |

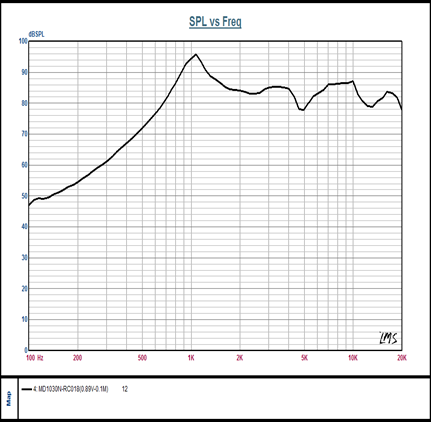

Characteristic Response
Dimension Drawing
