SWM-30R5.9-8B1R
| Diameter | 30 mm |
|---|---|
| Height | 5.9 mm |
| SPL | 92 dB |
| Impedance | 8 Ω |
| Frequency | 0.75 kHz |
| Power | 1 W |
We are sorry, the datasheet is not available here, please send us a message so that we can help.
Electrical Specifications
| Characteristic | Minimum | Rated | Maximum | Notes |
|---|---|---|---|---|
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 92 | Measured 87±3dB(SPL) at 1W and 0.3m. Frequencies: 1.5 / 2.0 / 2.5 / 3.0kHz | ||
| Power W | 1 | 2 | ||
| Frequency kHz | 0.75 | ±20% | ||
| Available Input Impedance Ω | 8 | |||
| Width mm | 30 | |||
| Height mm | 5.9 |

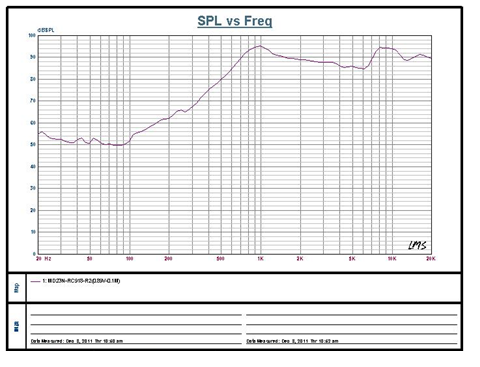

Characteristic Response
Dimension Drawing
