SWM-31O18-4A5R
| Height | 18 mm |
|---|---|
| Length | 31 mm |
| Width | 31 mm |
| SPL | 96.4 dB |
| Impedance | 4 Ω |
| Frequency | 0.45 kHz |
| Power | 5 W |
We are sorry, the datasheet is not available here, please send us a message so that we can help.
Electrical Specifications
| Characteristic | Minimum | Rated | Maximum | Notes |
|---|---|---|---|---|
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 96.4 | Measured 82±3dB(SPL) at 1W and 0.5m. Frequencies: 800 / 1000 / 1200 / 1500 Hz | ||
| Power W | 5 | 6 | ||
| Frequency kHz | 0.45 | ±20% | ||
| Available Input Impedance Ω | 4 | |||
| Width mm | 31 | 91 | ||
| Height mm | 18 |

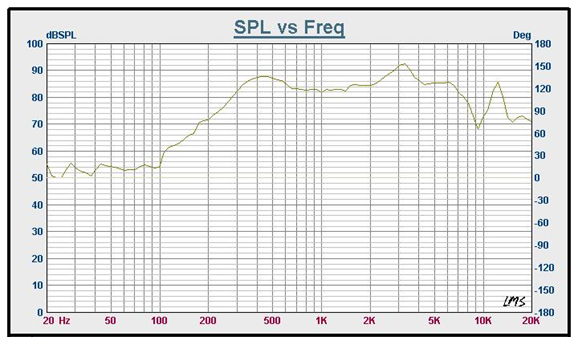

Characteristic Response

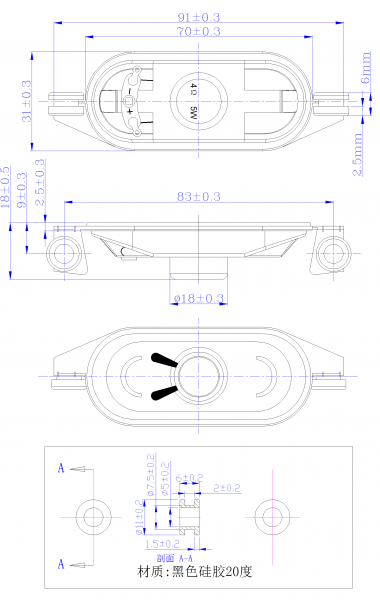

Dimension Drawing
