SWM-36.5L9-8N1R
| Height | 9 mm |
|---|---|
| Length | 36.5 mm |
| Width | 15.8 mm |
| SPL | 96.4 dB |
| Impedance | 8 Ω |
| Frequency | 1 kHz |
| Power | 1 W |
We are sorry, the datasheet is not available here, please send us a message so that we can help.
Electrical Specifications
| Characteristic | Minimum | Rated | Maximum | Notes |
|---|---|---|---|---|
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 96.4 | Measured 79dB(SPL) at 1W and 0.5m. Frequencies: 1.5 / 2.0 / 2.5 / 3.0kHz | ||
| Power W | 1 | 1.5 | ||
| Frequency kHz | 1 | ±20% | ||
| Available Input Impedance Ω | 8 | |||
| Width mm | 15.8 | 36.5 | ||
| Height mm | 9 |

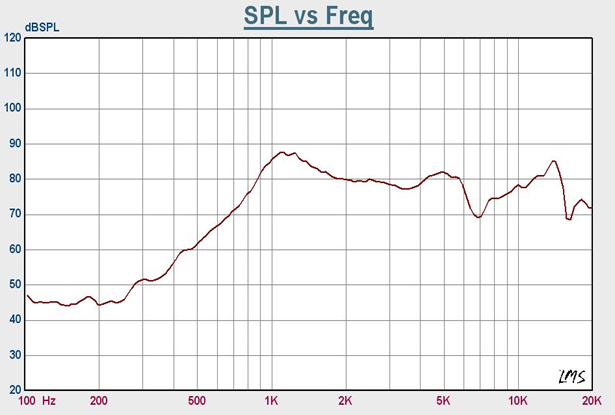

Characteristic Response

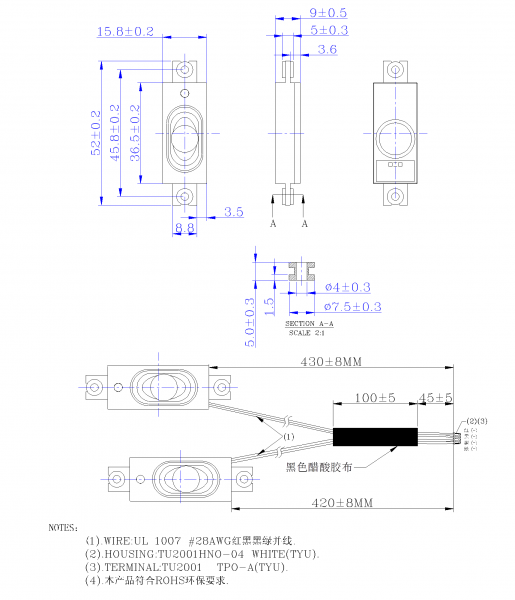

Dimension Drawing
