SWM-40L8.5-8N2R
| Height | 8.5 mm |
|---|---|
| Length | 40 mm |
| Width | 20 mm |
| SPL | 92 dB |
| Impedance | 8 Ω |
| Frequency | 0.7 kHz |
| Power | 2 W |
We are sorry, the datasheet is not available here, please send us a message so that we can help.
Electrical Specifications
| Characteristic | Minimum | Rated | Maximum | Notes |
|---|---|---|---|---|
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 92 | Measured 92±3dB(SPL) at 1W and 0.3m. Frequencies: 1000 / 1200 / 1500 / 2000Hz | ||
| Power W | 2 | 3 | ||
| Frequency kHz | 0.7 | ±20% | ||
| Available Input Impedance Ω | 8 | |||
| Width mm | 20 | 40 | ±0.3mm | |
| Height mm | 8.5 | ±0.5mm |

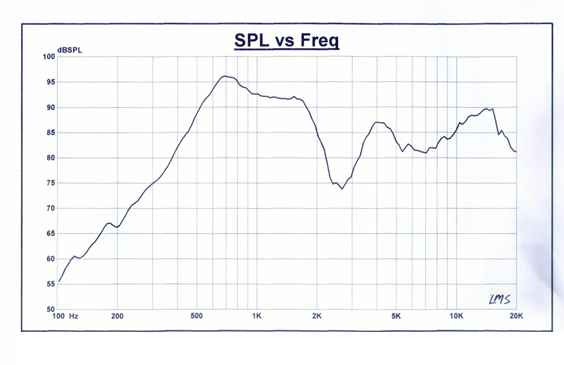

Characteristic Response

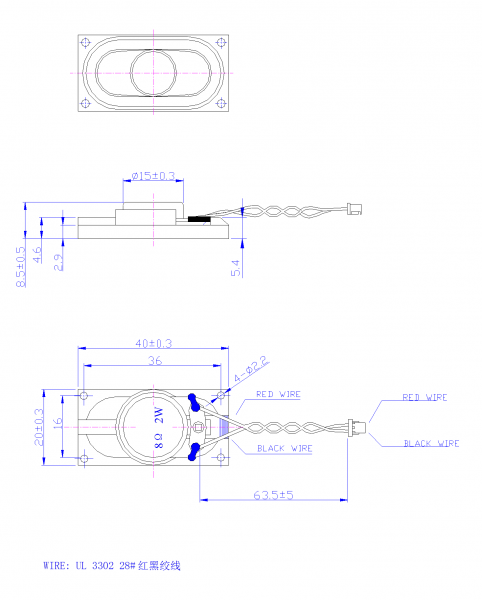

Dimension Drawing
