SWM-40R27.3-4F2R
| Diameter | 40 mm |
|---|---|
| Height | 27.3 mm |
| SPL | 96.4 dB |
| Impedance | 4 Ω |
| Frequency | 0.6 kHz |
| Power | 2 W |
We are sorry, the datasheet is not available here, please send us a message so that we can help.
Electrical Specifications
| Characteristic | Minimum | Rated | Maximum | Notes |
|---|---|---|---|---|
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 96.4 | Measured 84±3dB(SPL) at 0.25W and 0.5m. Frequencies: 800 / 1000 / 1200 / 1500Hz | ||
| Power W | 2 | 3 | ||
| Frequency kHz | 0.6 | ±20% | ||
| Available Input Impedance Ω | 4 | |||
| Width mm | 40 | |||
| Height mm | 27.3 |

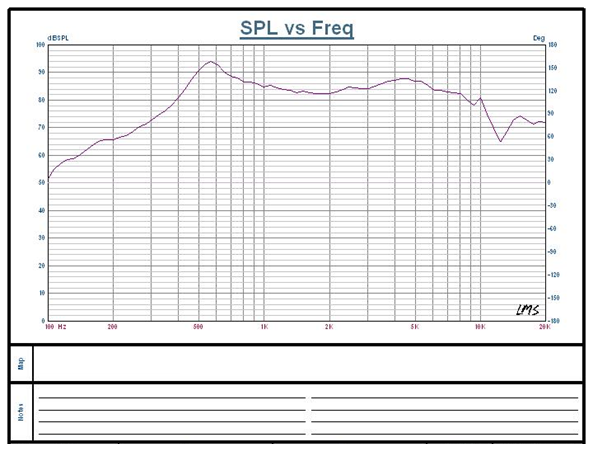

Characteristic Response

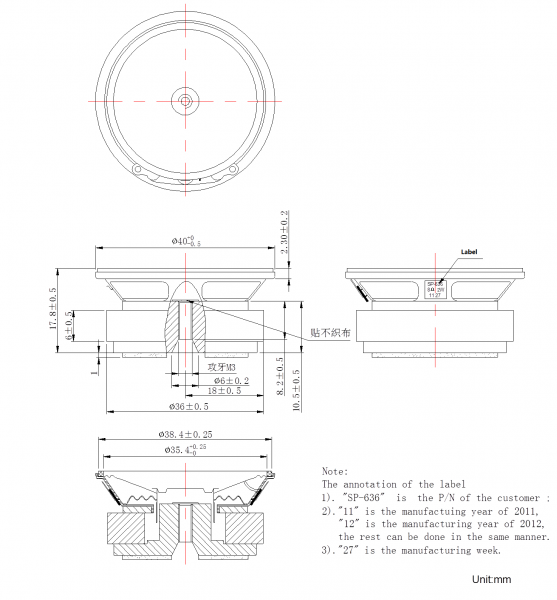

Dimension Drawing
