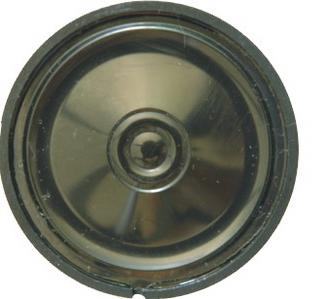

SWM-40R4.4-8N0.05R
Features & Applications
Mylar
Full Range Sound
Natural Sound & Music
Slim size
Waterproof
| Diameter | 40 mm |
|---|---|
| Height | 4.4 mm |
| SPL | 78 dB |
| Impedance | 8 Ω |
| Frequency | 0.42 kHz |
| Power | 0.05 W |
We are sorry, the datasheet is not available here, please send us a message so that we can help.
Electrical Specifications
| Characteristic | Minimum | Rated | Maximum | Notes |
|---|---|---|---|---|
| Type of Magnet | NdFeB | |||
| Type of Frame | Plastic | |||
| Type of Diaphragm | PET | |||
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 78 | Measured 78±3dB at 0.05W and 30cm. | ||
| Power W | 0.05 | 0.1 | ||
| Frequency kHz | 0.42 | 0.42 | 4 | |
| Available Input Impedance Ω | 4 | 8 | 150 | |
| Width mm | 40 | |||
| Height mm | 4.4 |
