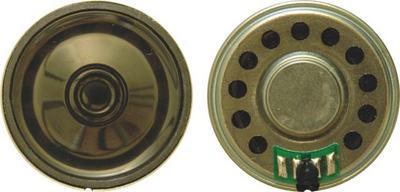

SWM-40R5.2-50N0.3R
Features & Applications
Mylar
Full Range Sound
Natural Sound & Music
Slim size
Waterproof
| Diameter | 40 mm |
|---|---|
| Height | 5.2 mm |
| SPL | 80 dB |
| Impedance | 50 Ω |
| Frequency | 0.5 kHz |
| Power | 0.3 W |
We are sorry, the datasheet is not available here, please send us a message so that we can help.
Electrical Specifications
| Characteristic | Minimum | Rated | Maximum | Notes |
|---|---|---|---|---|
| Type of Magnet | NdFeB | |||
| Type of Frame | Metal | |||
| Type of Diaphragm | PET | |||
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 80 | Measured 80±3dB at 0.3W and 30cm. | ||
| Power W | 0.3 | 0.5 | ||
| Frequency kHz | 0.5 | 0.5 | 8 | |
| Available Input Impedance Ω | 4 | 50 | 150 | |
| Width mm | 40 | |||
| Height mm | 5.2 |

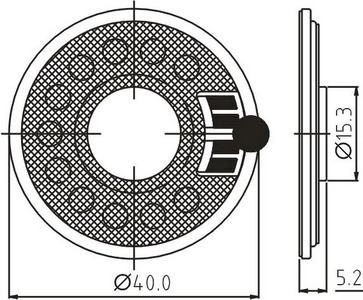

Dimension Drawing
