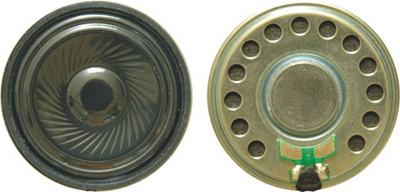

SWM-44R6.2-8N1R
Features & Applications
Mylar
Full Range Sound
Natural Sound & Music
Slim size
Waterproof
| Diameter | 44 mm |
|---|---|
| Height | 6.2 mm |
| SPL | 92 dB |
| Impedance | 8 Ω |
| Frequency | 0.68 kHz |
| Power | 1 W |
We are sorry, the datasheet is not available here, please send us a message so that we can help.
Electrical Specifications
| Characteristic | Minimum | Rated | Maximum | Notes |
|---|---|---|---|---|
| Type of Magnet | NdFeB | |||
| Type of Frame | Metal | |||
| Type of Diaphragm | PET | |||
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 92 | Measured 92±3dB at 1W and 30cm. | ||
| Power W | 1 | 2 | ||
| Frequency kHz | 0.68 | 0.68 | 6 | |
| Available Input Impedance Ω | 4 | 8 | 150 | |
| Width mm | 44 | |||
| Height mm | 6.2 |

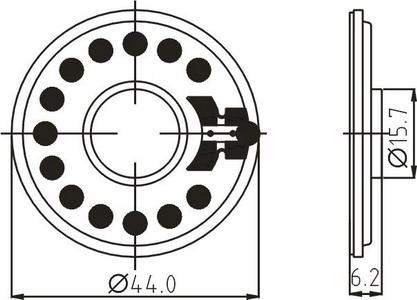

Dimension Drawing
