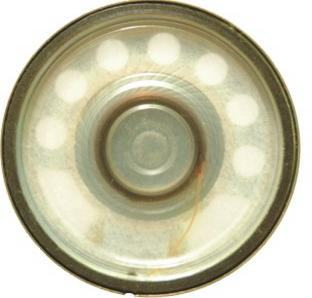

SWM-45R6.4-8N1R
Features & Applications
Mylar
Full Range Sound
Natural Sound & Music
Slim size
Waterproof
| Diameter | 45 mm |
|---|---|
| Height | 6.4 mm |
| SPL | 91 dB |
| Impedance | 8 Ω |
| Frequency | 0.53 kHz |
| Power | 1 W |
We are sorry, the datasheet is not available here, please send us a message so that we can help.
Electrical Specifications
| Characteristic | Minimum | Rated | Maximum | Notes |
|---|---|---|---|---|
| Type of Magnet | NdFeB | |||
| Type of Frame | Metal | |||
| Type of Diaphragm | PET | |||
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 91 | Measured 91±3dB at 1W and 30cm. | ||
| Power W | 1 | 2 | ||
| Frequency kHz | 0.53 | 0.53 | 4.5 | |
| Available Input Impedance Ω | 4 | 8 | 150 | |
| Width mm | 45 | |||
| Height mm | 6.4 |
