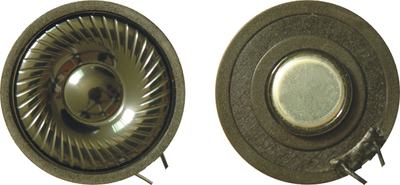

SWM-49R9.7-8N2R
Features & Applications
Mylar
Full Range Sound
Natural Sound & Music
Slim size
Waterproof
| Diameter | 49 mm |
|---|---|
| Height | 9.7 mm |
| SPL | 93 dB |
| Impedance | 8 Ω |
| Frequency | 0.42 kHz |
| Power | 2 W |
We are sorry, the datasheet is not available here, please send us a message so that we can help.
Electrical Specifications
| Characteristic | Minimum | Rated | Maximum | Notes |
|---|---|---|---|---|
| Type of Magnet | NdFeB | |||
| Type of Frame | Plastic | |||
| Type of Diaphragm | PET | |||
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 93 | Measured 93±3dB at 2W and 30cm. | ||
| Power W | 2 | 0 | ||
| Frequency kHz | 0.42 | 0.42 | 20 | |
| Available Input Impedance Ω | 4 | 8 | 150 | |
| Width mm | 49 | |||
| Height mm | 9.7 |

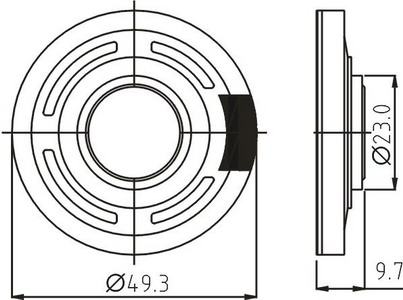

Dimension Drawing
