SWM-50R7.4-8N0.2R
| Diameter | 50 mm |
|---|---|
| Height | 7.4 mm |
| SPL | 82.5 dB |
| Impedance | 8 Ω |
| Frequency | 0.35 kHz |
| Power | 0.2 W |
We are sorry, the datasheet is not available here, please send us a message so that we can help.
Electrical Specifications
| Characteristic | Minimum | Rated | Maximum | Notes |
|---|---|---|---|---|
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 82.5 | Measured 85±3dB(SPL) at 0.2W and 0.1m. Frequencies: 1.0 / 1.2 / 1.5 / 2.0kHz | ||
| Power W | 0.2 | 0.4 | ||
| Frequency kHz | 0.35 | ±20% | ||
| Available Input Impedance Ω | 8 | |||
| Width mm | 50 | |||
| Height mm | 7.4 |

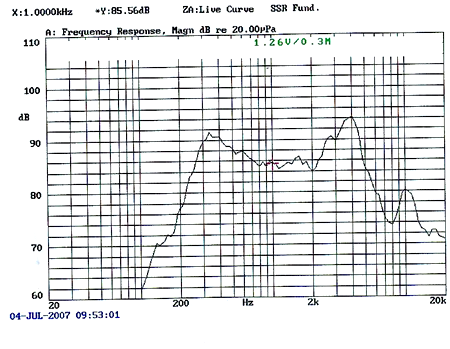

Characteristic Response
Dimension Drawing
