SWO-1524L4.8-8N0.8R
Features & Applications
Oblong
Multimedia Applications
Slim
| Height | 4.8 mm |
|---|---|
| Length | 24 mm |
| Width | 15 mm |
| SPL | 88.46 dB |
| Impedance | 8 Ω |
| Frequency | 0.88 kHz |
| Power | 0.8 W |
We are sorry, the datasheet is not available here, please send us a message so that we can help.
Electrical Specifications
| Characteristic | Minimum | Rated | Maximum | Notes |
|---|---|---|---|---|
| Type of Magnet | NdFeB | |||
| Type of Frame | Plastic | |||
| Type of Diaphragm | PET | |||
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 88.46 | Measured 98±3dB at 0.8W and 10cm. | ||
| Power W | 0.8 | 1.2 | ||
| Frequency kHz | 0.88 | 0.88 | 20 | |
| Available Input Impedance Ω | 4 | 8 | 64 | |
| Width mm | 24 | |||
| Height mm | 4.8 | |||
| Weight g | 24 |

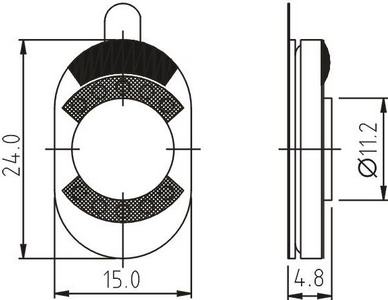

Dimension Drawing
